Smart Convenient Charging Wherever You Go
Electric vehicle/electric bus fast charger

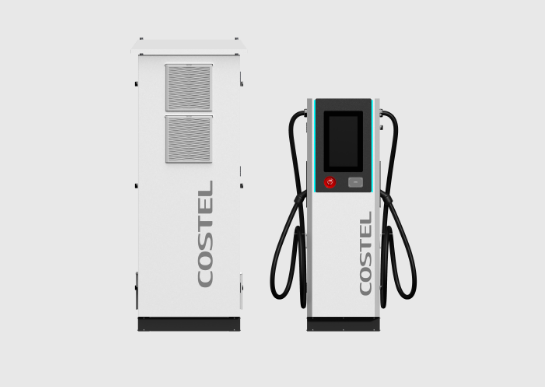

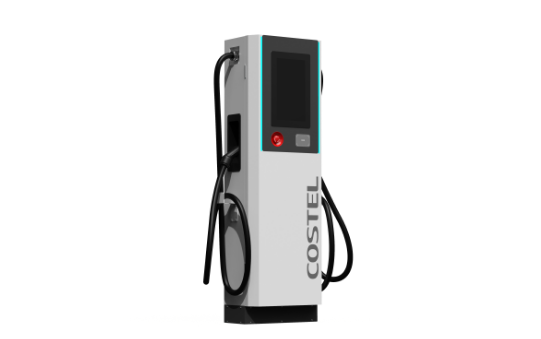

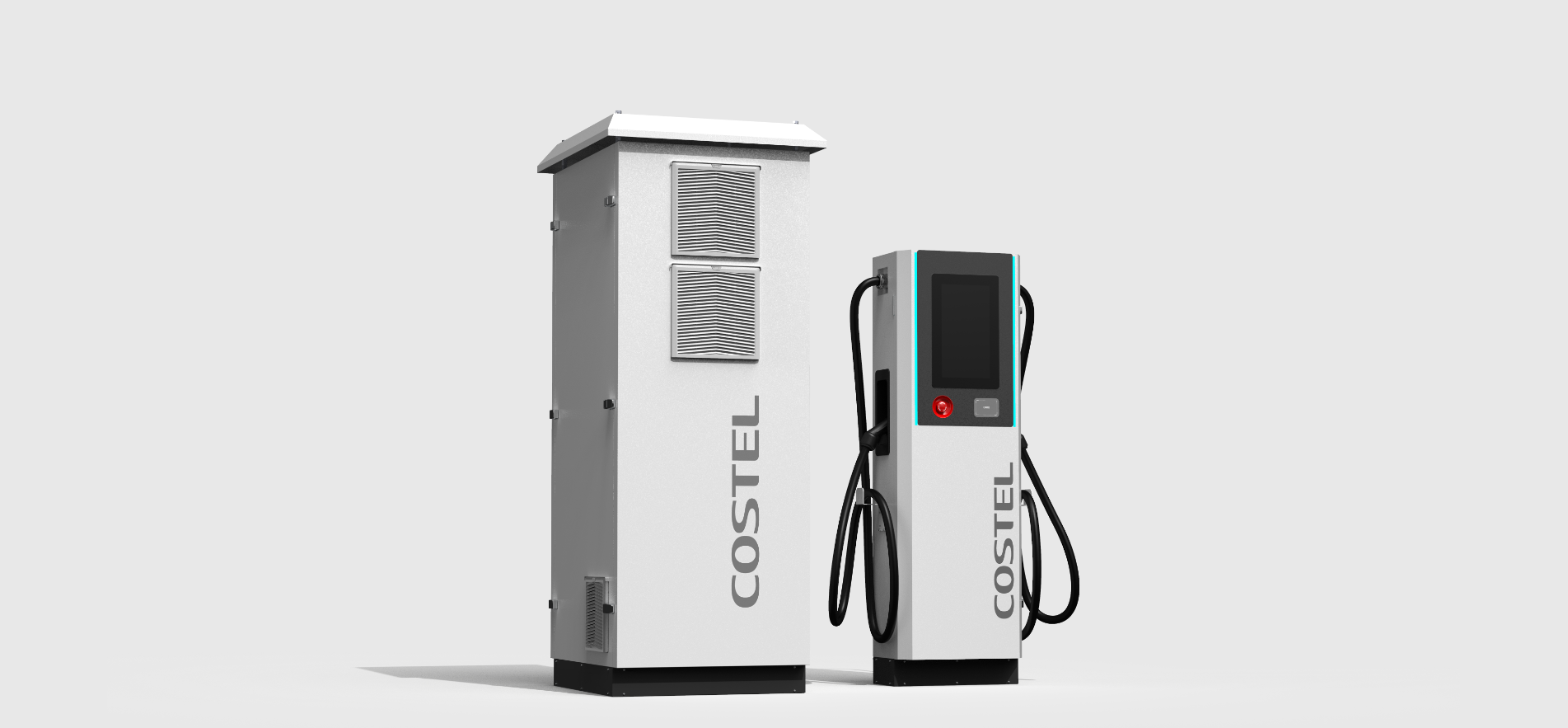

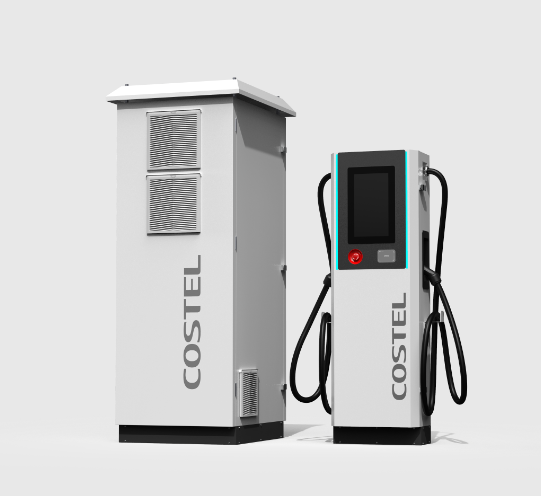

2CH DISPENSER CEC-0022
2CH DISPENSER
Stable charging power supply dispenser
Supports independent charging and simultaneous charging
User authentication through RFID method
Enhanced painting quality and durability even in external installation environments
Equipped with a 15-inch large LCD to increase user visibility and improve user convenience
Screen usage configuration focused on user convenience
2CH DISPENSER CEC-0022

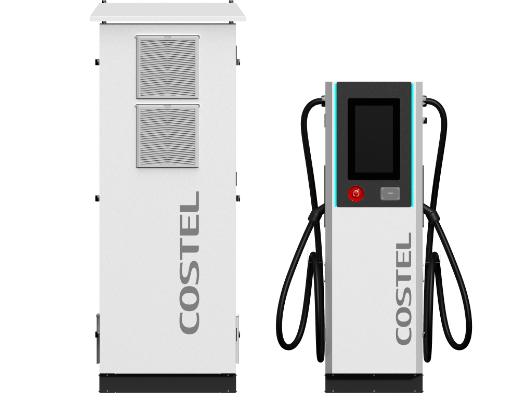

COSTEL’s design IDENTITY
Equipped with 15-inch large LCD
Equipped with a 15-inch large LCD to increase user visibility and improve user convenience
Ensure durability in external installation environments
Enhanced paint quality ensures durability even in external installation environments
| Product name | CEC-0022 BR/BC |
|---|---|
| Charging type | Combo Type2 + Combo Type2 |
| Input | 3-phase 4-wire 380V AC, 400A, 60Hz |
| Output | 150~1000V DC, 0~200A, 200kW (1ch) 150~1000V DC, 0~200A, 120kW (2ch) |
| Environmental conditions | Temperature: -25℃ ~ 40℃ Humidity: 20% ~ 93% (however, there should be no dew) |
| Operation Screen | 15-inch LCD touch screen |
| User authentication | RF card (BR) or credit card (BC) |
| Charging time | 200kW (1ch) - About 25 minutes 120kW (2ch) - About 40 minutes (Based on 72kWh battery capacity) |
| Product size | 800(W) x 2000(H) x 953(D)mm |
| IP | IP44 |
| Safety features | Input/output overvoltage, overcurrent detection, temperature abnormality, output leakage detection, emergency stop button |
It is subject to change without notice due to the improvement of the appearance or function of the product.
