Smart Convenient Charging Wherever You Go
Smart Compact Public Charger
Compact CEC-2303 HR1
Wall-mounted Public Charger (7kW)
COSTEL's unique design IDENTITY
4.3-inch LCD screen to check the vehicle's charging status
User authentication through RFID method
Application of apartment complex and charging business operator operation system
Charging status can be checked on mobile through HomeNet APP
Easy and fast user management using credit card and RFID methods
User authentication through RFID method
Application of apartment complex charging management operation system
SMART charging confirmation through APP
4.3-inch LCD screen to check the vehicle's charging status
Charging status can be checked on mobile through HomeNet APP
Modern design that goes well with any location
COSTEL’s unique design IDENTITY
4.3 inch touchscreen
Easy and fast graphical User Interface
Easy and fast touch screen UI
Durability in outdoor installation environments
Enhanced paint quality ensures durability in outdoor installation environments
Product name
CEC-2303 HR1
Charging type
SAE J1772
Input
Single phase 220V AC, 32A, 60Hz
Output
Single phase 220V AC, 32A, 60Hz, 7kW x 1ch
Environmental conditions
Temperature: : -25℃ ~ 40 ℃
Humidity : 20％ ~ 93％(however, there should be no dew)

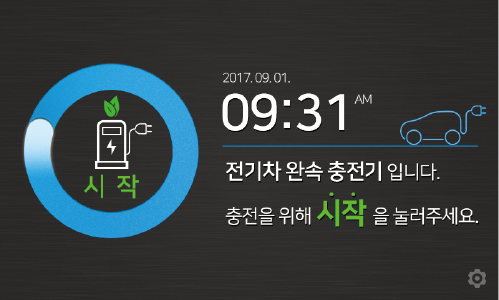

Operation Screen
4.3 inch LCD touch screen
User authentication
RF card
Charging time
About 10 hours (based on 72kWh battery capacity)
Product size
230(W) x 330(H) x 121.5(D)mm
IP
IP44
Certification
KC certified
It is subject to change without notice due to the improvement of the appearance or function of the product.
