Smart Convenient Charging Wherever You Go
Smart Compact Public Charger
Compact CEC-3104 HR/HC

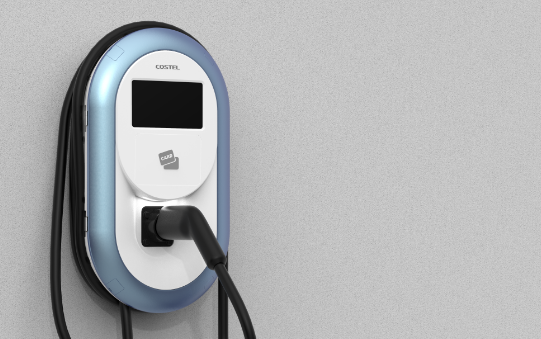

Wall-mounted public charger (7kW)
COSTEL's unique design IDENTITY
7-inch LCD screen to check the vehicle's charging status
User authentication through RFID method
Application of apartment complex and charging business operator operation system
Charging status can be checked on mobile through HomeNet APP
Easy and fast user management using credit card and RFID methods
User authentication through RFID method
Application of apartment complex charging management operation system
SMART charging confirmation through APP

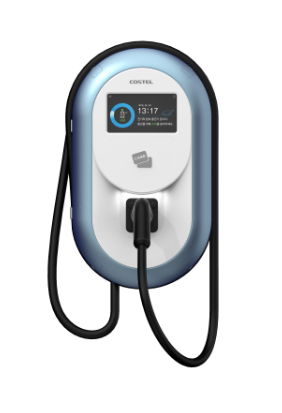

Check the vehicle's charging status with a 7-inch LCD screen
Check the charging status on your mobile phone via the HomeNet APP

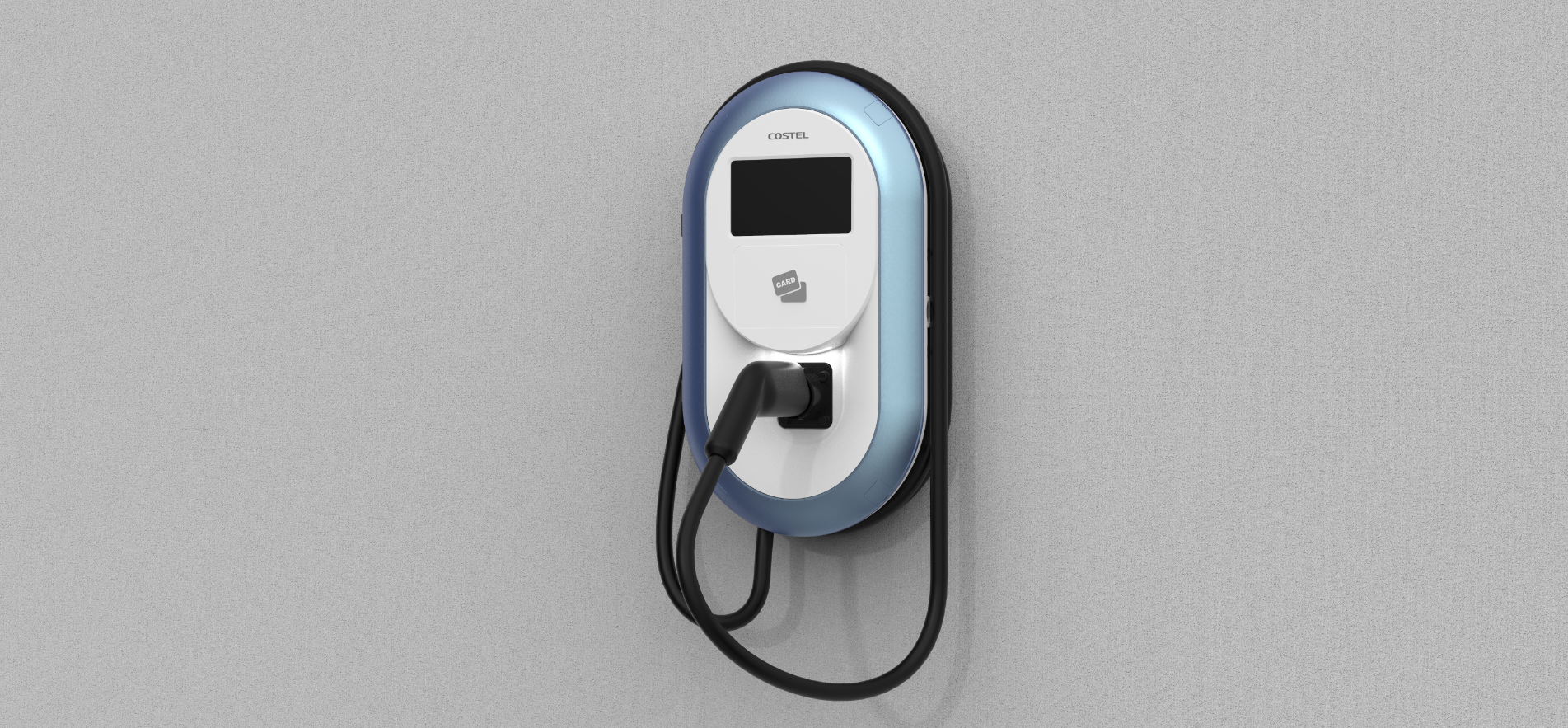

Modern design that goes well with any location
COSTEL’s unique design IDENTITY
7-inch touchscreen
Easy and fast graphical User Interface
Easy and fast touchscreen UI
| Product name | CEC-3104 HR/HC |
|---|---|
| Charging type | SAE J1772 |
| Input | Single phase 220V AC, 32A, 60Hz |
| Output | Single phase 220V AC, 32A, 60Hz, 7kW × 1ch |
| Environmental conditions |
Temperature: : -25℃ ~ 40℃ Humidity : 20% ~ 93% (however, there should be no dew) |
| Operation Screen | 7-inch LCD touch screen |
| User authentication | RF card (HR) or credit card (HC) |
| Charging time | About 10 hours (based on 72kWh battery capacity) |
| Product size | 310(W) x 535(H) x 133(D)mm |
| IP | IP44 |
| Certification | KC certified |
It is subject to change without notice due to the improvement of the appearance or function of the product.
